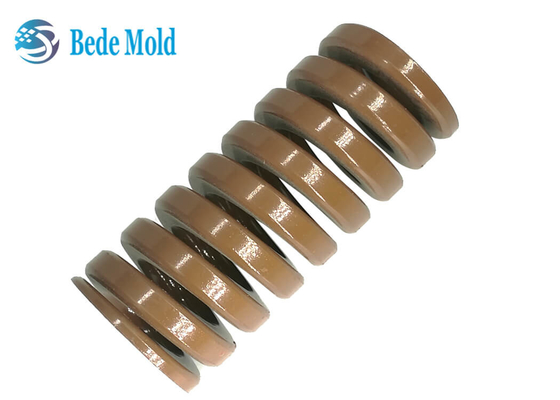

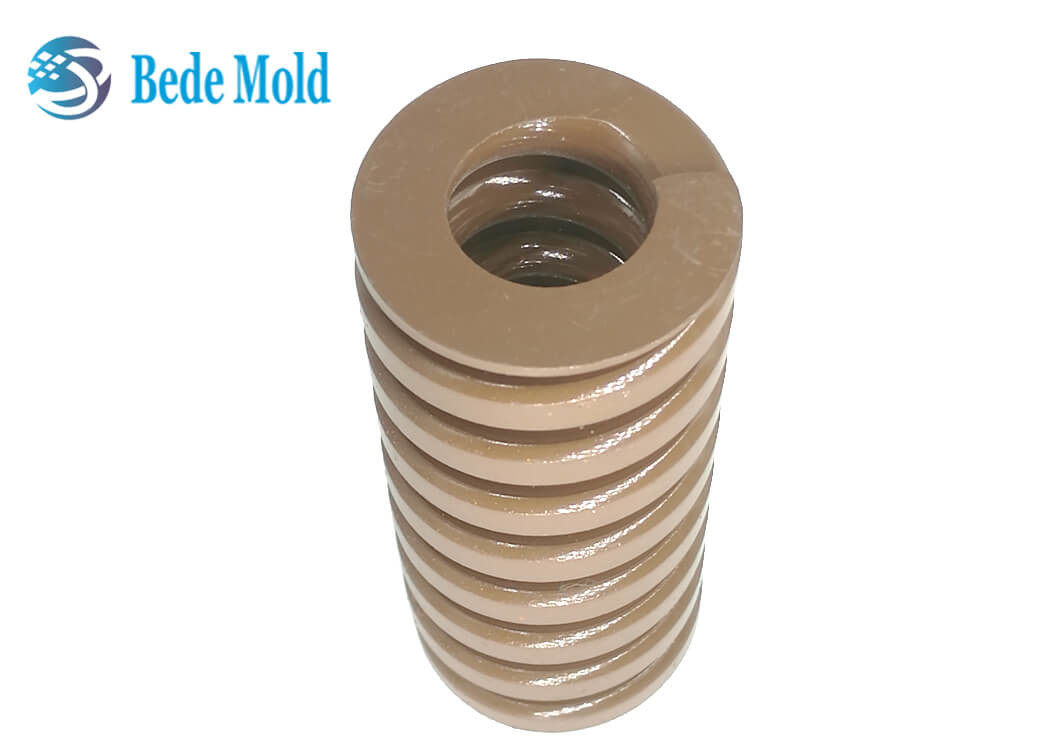

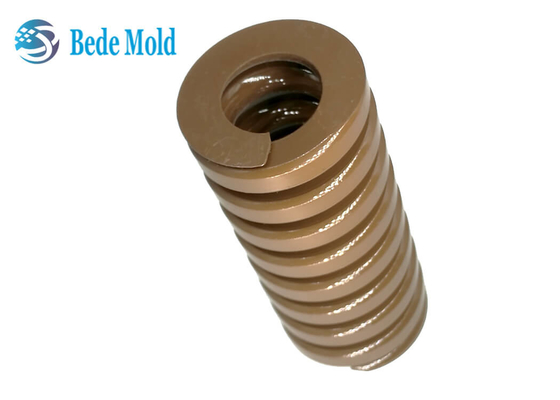

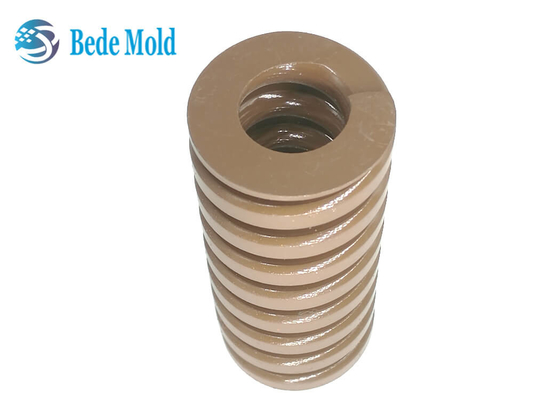

Name: Punching Die Compression Springs TB 60Si2MnA Materails Outer Diameter 60mm
Brand: Shenzhen Bede Mold Co., Ltd
SKU: BD~s0000
Price: Negotiable USD
Availability: InStock

Home Products Mold Spring JIS B5012

Punching Die Compression Springs TB 60Si2MnA Materails Outer Diameter 60mm

Product Details:

Place of Origin:	China
Brand Name:	BD
Certification:	RoHS
Model Number:	BD~s0000

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	4.78~18.17 USD per piece
Packaging Details:	Plistic bags
Delivery Time:	within 2 days for retail, 10~15 days for wholesale
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	120000~150000 pieces per month

Contact Now

Detailed Product Description

Color:	Brown	Material:	60Si2MnA
Size:	Outer Diameter 60 Mm	Packing:	PE Bags
Service Life:	Depending On The Compression Ratio	Load:	Heavy Load
Highlight:	industrial coil springs , light duty die springs

60mm Punching Die Spring Injection Mould Spring TB Extra Heavy Load Brown Color 60Si2MnA Materails

Discraption

Mateials: Alloy steel 50CrVA / 60Si2MnA
Load: Extra Heavy Load / TB
Color: brown
Compression Ratio: 20% maximum
Outer Diameter: 60 mm, Inner diameter 30 mm
Length: 60~300 mm
Production standards: Japan JIS

Load	Color	Compression Ratio %
Lightest	yellow	40	45	50
Light	blue	32	36	40
Medium	red	25.6	28.8	32
Heavy	green	19.2	21.6	24
Extra Heavy	Brown	16	18	20
Life length/Compression times		1,000,000	500,000	300,000

Quick Details

materials	Alloy steel 50CrVA	outer diameter	60mm
Compression Ratio	24% maxi.	inner diameter	30 mm
Length	60~500 mm	load	Extra Heavy load / TB

Length and price

Size	Length / Millimeter
Φ 60	60	65	70	75	80	90	100	125
Price/USD	4.78	4.78	5.55	5.55	6.12	6.89	7.65	9.56

Size	Length / Millimeter
Φ 60	150	175	200	250	275	300
Price/USD	11.09	12.43	13.39	14.92	15.68	18.17

Other size

We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time, so please contact us for confirmation before purchase.

OD Φmm	8	10	12	14	16	18	20	22	25	27	30	35	40	50	60	70
ID Φmm	4	5	6	7	8	9	10	11	12.5	13.5	15	17	20	25	30	35
Length mm	20~300													50~500

Application
Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

Attention

Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:

1.Maintaining initial compression more than 1mm

2. Prevent any other articles from the middle of the spring

3. Keep vertical compression to prevent bending
